Tortuga Diaphragm Pump

• Self-priming to 10 Ft.
• 10 GPM (38 lpm)
• Max Discharge (Head): 15 ft. (4.6 m)
• 1-1/2" Male NPT Inlet
• 1-1/2" Female NPT Discharge
• Dry Run Capability
• Reinforced Polypropylene Construction Neoprene Diaphragms and Valves
• 316 Stainless Steel Shaft and Hardware Washdown Duty Motors

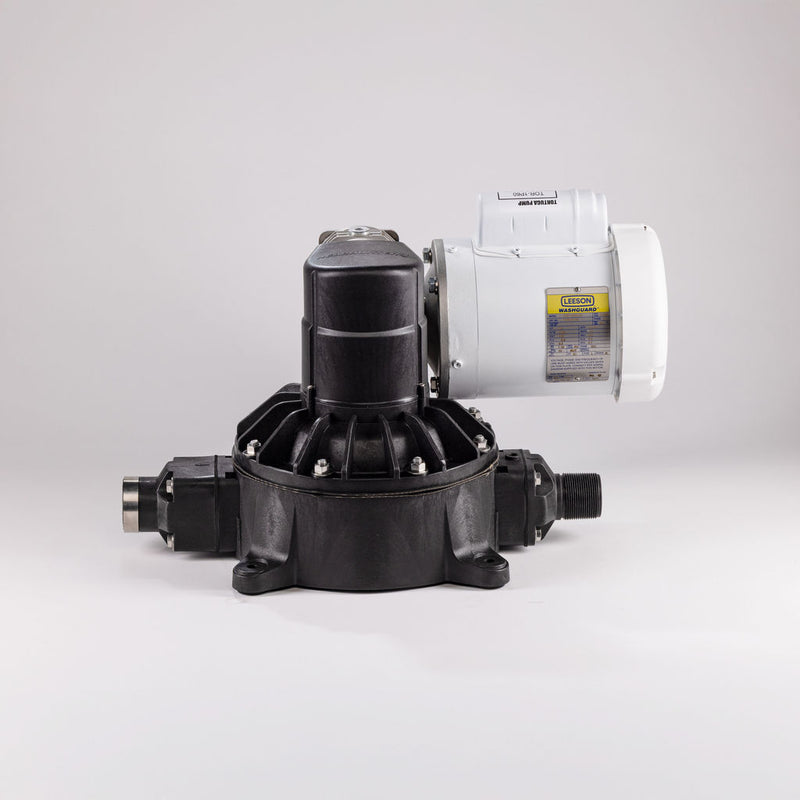

The Tortuga is a lightweight, corrosion-resistant diaphragm pump constructed from glass-reinforced polypropylene. Designed for high-reliability applications, it’s ideal for handling black water (solids), gray water, fish box drainage, and bilge pumping. Its self-priming capability and excellent solids-handling performance make it well-suited for transferring waste from holding tanks to sewage treatment systems or overboard discharge.

PERFORMANCE

Delivery (Flow): 10 GPM (38 lpm)
Max Suction lift: 10 ft. (3 m)
Max Discharge (Head): 15 ft. (4.6 m)
Weight: 43 lbs. (19.5 kg)
